J.L. Industries Ambassador Steel Fire Extinguisher Cabinets

J.L. Industries Ambassador Steel Fire Extinguisher Cabinets

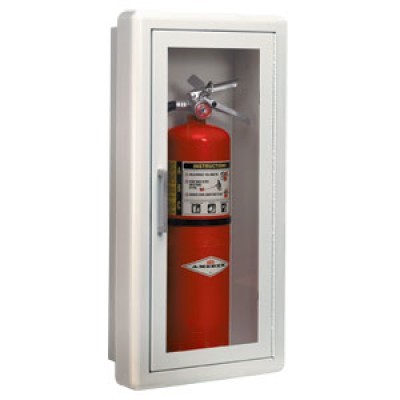

Keep your fire extinguisher safely out of the way, but handy when needed! These Ambassador Series Fire Extinguisher Cabinets by J.L. Industries are made of sturdy steel and have an electrostatic white epoxy finish. Also feature a continuous hinge door, double strength glass and a 1 1/4" face width on the trim and door. These cabinets come in surface mount, fully recessed (flat) and semi - recessed (1.5" or 3" trim) models. The 3" trim model has rolled edge construction, while the others are square edged. The glass doors have standard door hardware (zinc-plated pull handle and roller catch). NOTE: Add wall material thickness to wall depth when determining cabinet size (example: a standard 2 X 4" stud wall with 1/2" sheetrock would equal a 4" wall depth). Fire extinguisher shown in image not included with cabinet.

If you are ordering multiple fire extinguisher cabinets, discounts are available. Please contact us or fill out our quote request form.

Specs

8

Reviews

Technical Support

×

Technical Support

Need Help? We have highly trained people standing by to help you with any product selection or application questions you might have. Email us ([email protected]) for a quick response or for immediate help click the Chat button or call 1.800.511.8652.

Close

×

Close

  866-805-4250

  Email Us



Live Chat

Company

Testimonials

Customer Service

About Us

Privacy Policy

Terms & Conditions

Blog

Large Order Quotes

©Copyright Criticaltool.com. All Rights Reserved

Add to Favorites

Success! You have successfully logged in.

Create New List

×

Close

×

Please sign in or register to access lists

Close

×

Close

Close

Your message has successfully been sent. We will respond back soon

Close

Email entered was invalid.

Close

Name, Email, and your message are all required

Close

Name, Email, and Company are all required

Close

×

On Thursday, May 2nd, we will be implementing a new phone system. During this time our system will be completely down. Please contact us at [email protected] and we will get back to you as soon as possible.

Close

Part #	Trim	Tub ID			Frame OD		Wall Opening
		A	B	C	E	F	H	W	D
1013F10	Surface	26 1/2"	13"	6 5/8"	26 1/2"	13"	--	-	-
1015F10	Flat	24"	10 1/2"	6"	26 1/2"	13"	25"	11 1/2"	6"
1017F10	3"	24"	10 1/2"	6"	26 1/2"	13"	25"	11 1/2"	3 5/8"
1815F10	Flat	24"	10 1/2"	5 1/2"	26 1/2"	13"	25"	11 1/2"	5 1/2"
1816F10
